Decoding visual brain representations from electroencephalography through Knowledge Distillation and latent diffusion models

🔥INFO

Blog: 2025/07/23 by IgniSavium

  • Title: Decoding visual brain representations from electroencephalography through Knowledge Distillation and latent diffusion models
  • Authors: Matteo Ferrante, Nicola Toschi (University of Rome Tor Vergata)
  • Published: September 2023
  • Comment: arxiv
  • URL: https://arxiv.org/abs/2309.07149

🥜TLDR: Only train the Conv Encoder which maps EEG-signal spectrogram (derived from STFT) to ImageNet classification scores with CLIP knowledge distillation], and then use a category-related text template to guide Stable Diffusion generation.

Motivation

This research aims to enhance EEG-based brain decoding by developing an individualized, real-time image classification and reconstruction pipeline, addressing the limitations of prior studies that relied on multisubject models and struggled with low-fidelity visual reconstructions.

Model

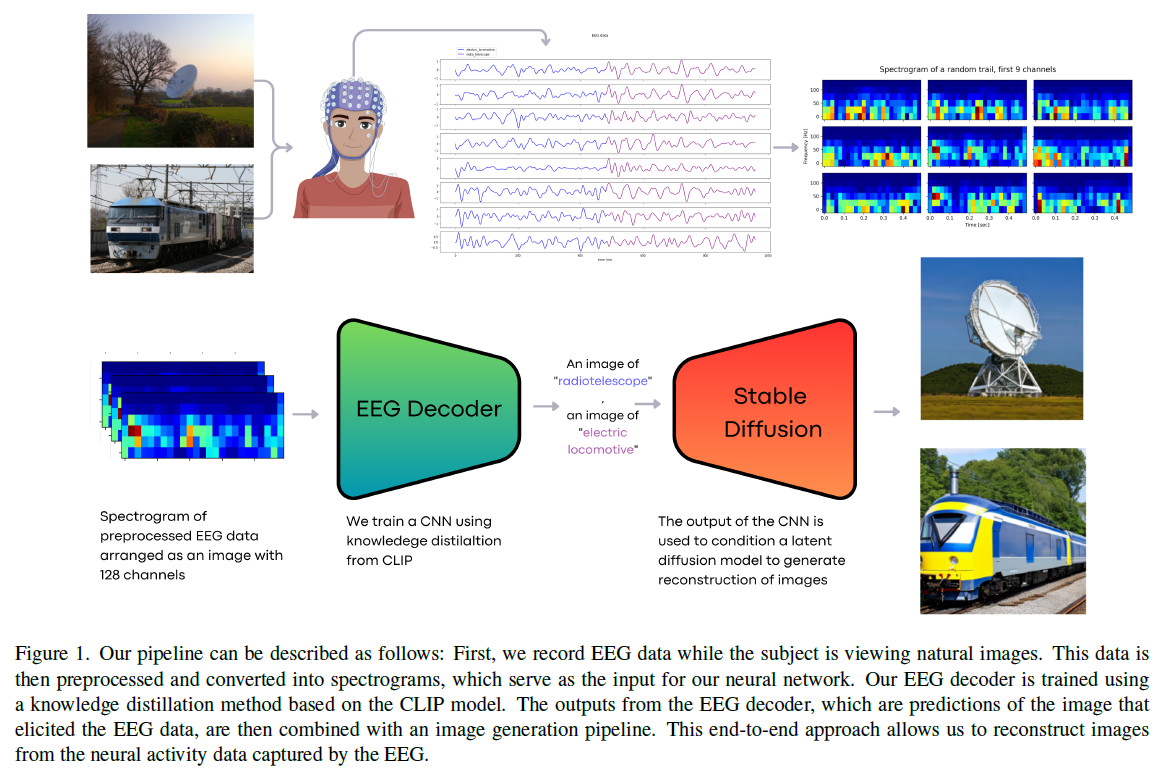

Architecture

image-20250723111118234

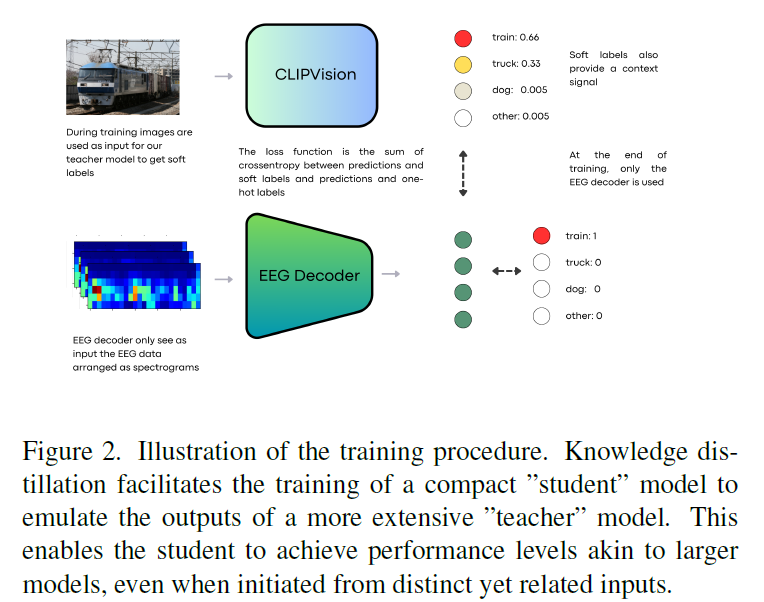

  1. train a EEG-based classifier using CLIP distillation:

image-20250723111234750

image-20250723111300710

  1. Use text prompt such as "an image of a \<predicted class>" to guide SD generation with random white noise \(z_T\).

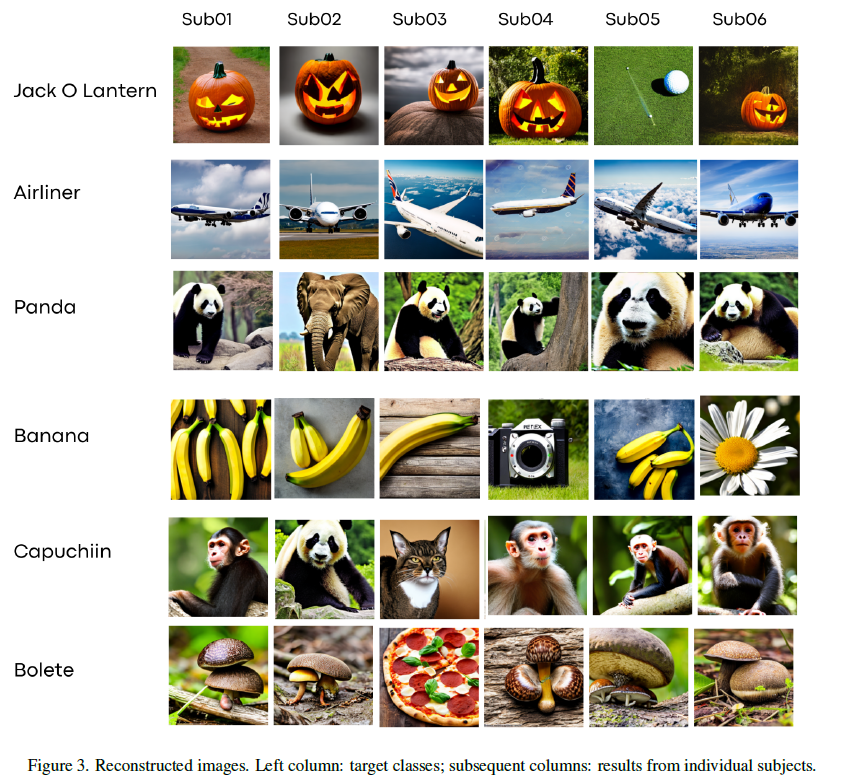

Evaluation

image-20250723111550680

Performance

Compared with other typical CLASSIFIER architectures.

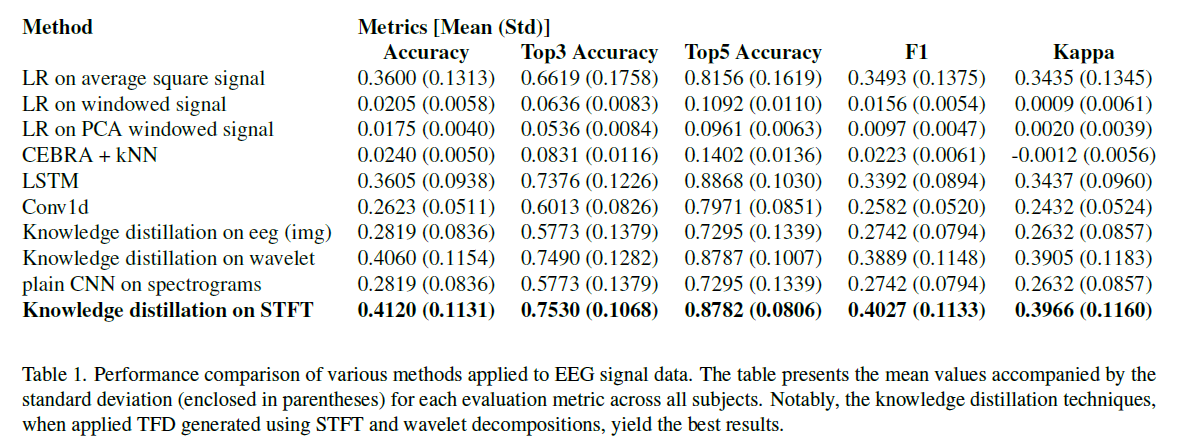

🤔Last two rows in the table below show the benefit of knowledge distillation, but the acc. gain is VERY LIKELY exaggerated.

🤔Using typical LSTM to model EEG time series directly can also have not bad performance.

image-20250723111606327

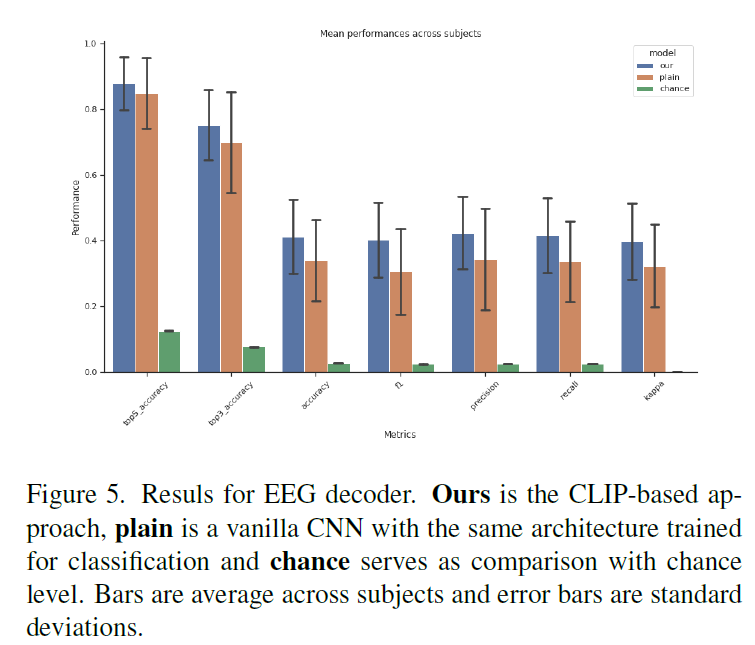

This bar chart below seems more plausible.

image-20250723111849268

🤔Reflections

Class-wise encoding is obviously insufficient for detailed semantic reconstruction.

Other works have mapped the EEG-signal to conditional text features and visual latent features in the SD.
