A New Framework Combining Diffusion Models and the Convolution Classifier for Generating Images from EEG Signals

🔥INFO

Blog: 2025/07/31 by IgniSavium

  • Title: A New Framework Combining Diffusion Models and the Convolution Classifier for Generating Images from EEG Signals
  • Authors: Guangyu Yang and Jinguo Liu (CAS)
  • Published: April 2024
  • Comment: Brain Science
  • URL: http://dx.doi.org/10.3390/brainsci14050478

🥜TLDR: EEG Conv-Encoder + PEFT SD.

Motivation

This paper aims to address the challenge of generating high-quality images from complex EEG signals—characterized by low spatial resolution and noise—by proposing a novel EEG-ConDiffusion framework that overcomes the limitations of prior EEG-to-image methods such as LSTM, GANs, and VAEs through effective CNN-based feature extraction and fine-tuning of a pretrained stable diffusion model.

Model

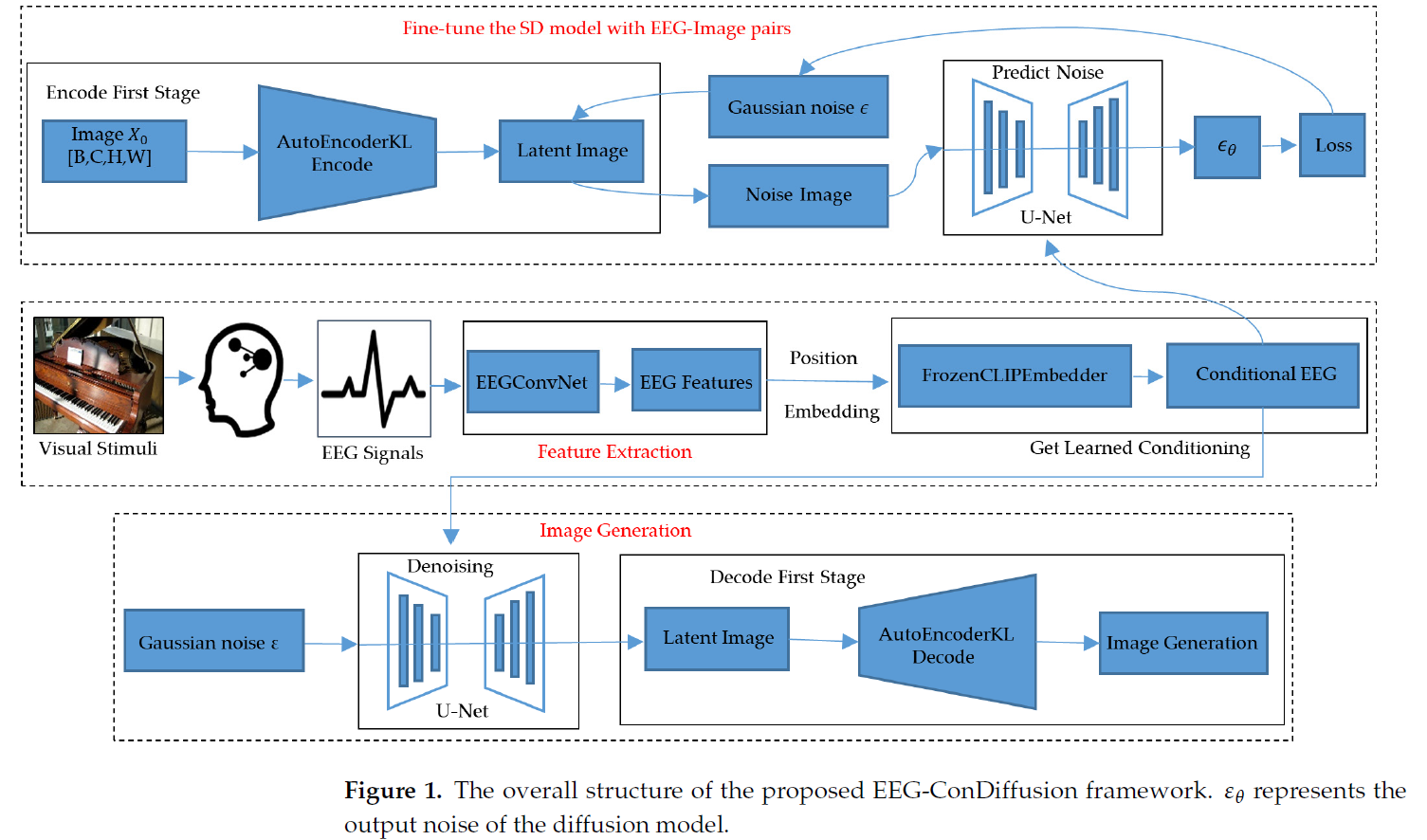

Architecture

image-20250731175353829

  1. Train EEG encoder by classification task.
  2. Train SD partially by reconstruction

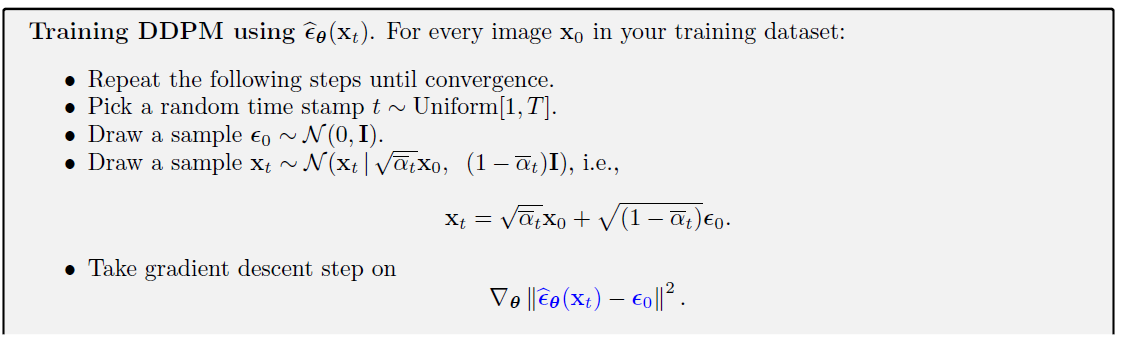

During the model fine-tuning process, we fix the remainder of the SD model and optimize the CLIP text encoder \(τ_θ(y)\), cross-attention head, and projection head at the same time...... EEG feature vectors that have undergone feature extraction and position encoding are used instead of text input to the pretrained CLIP Embedder. The CLIP Embedder was fine-tuned to help align the EEG feature vector space with the image feature space. Fine-tuning the cross-attention head is essential for bridging the pretraining conditional space and the latent space of the EEG features.

image-20250731175843091

🧐CLIP text embedder is very possibly NOT efficient here (big space gap between EEG Feature and Pure Text).

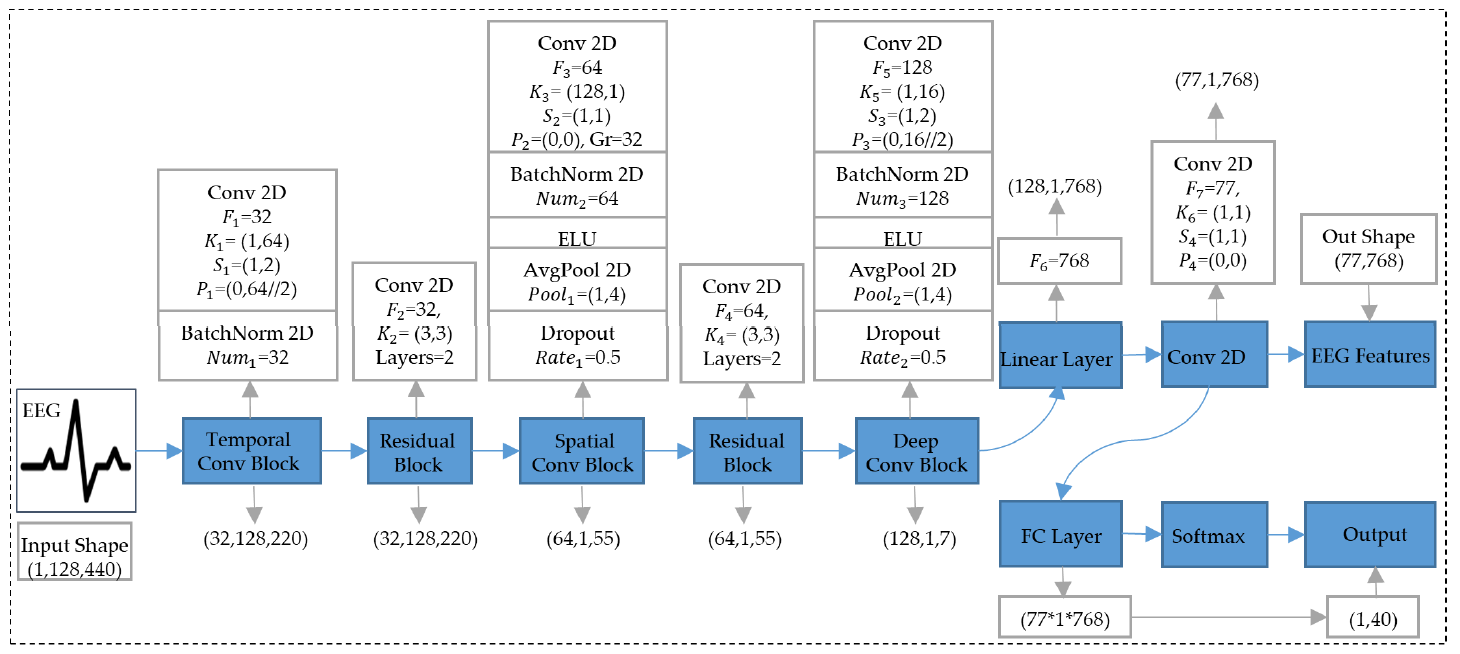

EEG encoder utilizes temporal + spatial convolutions.

image-20250731175915967

Evaluation

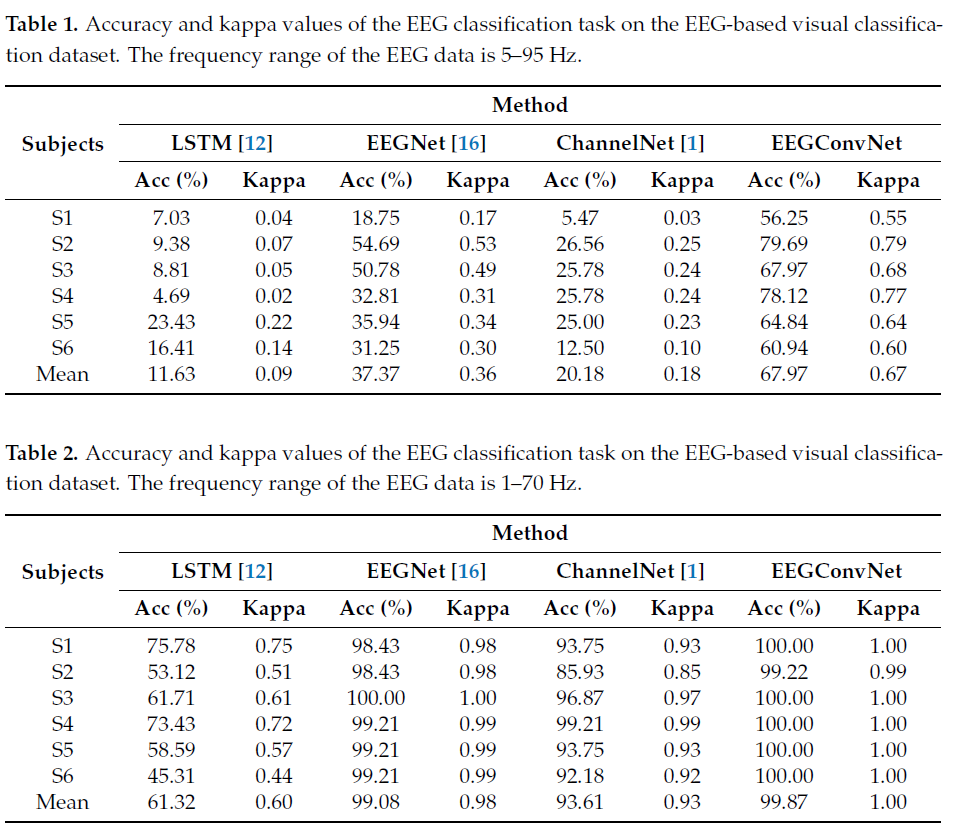

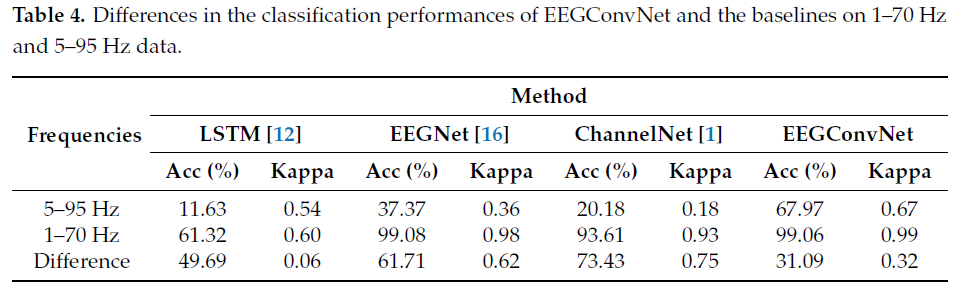

frequency band influences

  1. 1-70Hz performs much better than 5-95Hz
  2. Subject Variance is very obvious for performance

image-20250731180144112

image-20250731180220634

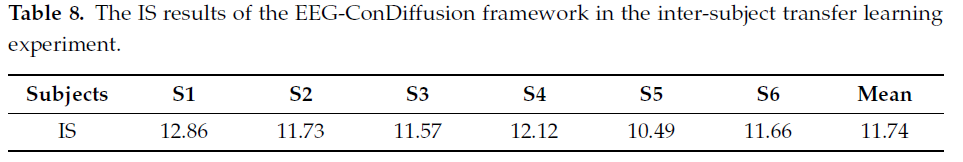

inter-subject generalizability

Use S1 weight as anchor.

image-20250731180430037

🧐Inception Score purely emphasizes the entropy of prediction scores, not very enough to show accuracy.
